Machine for Sweater

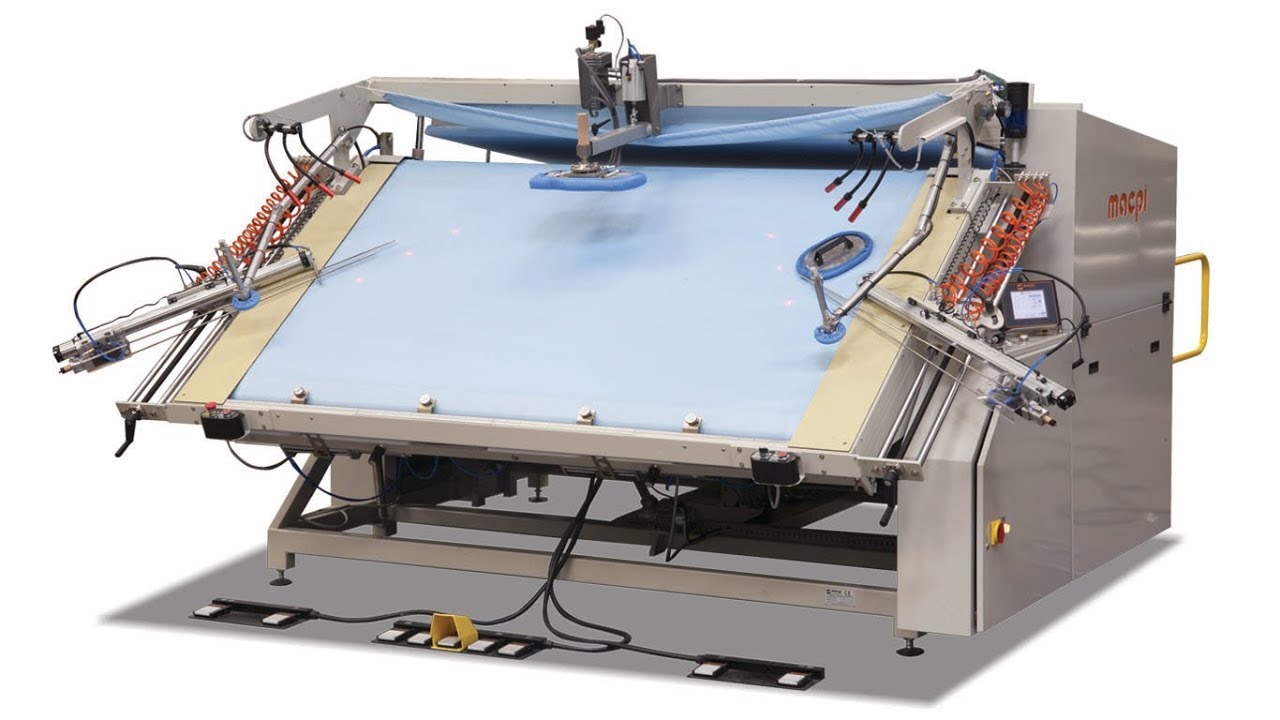

Machine for Sweater / Knitted Garments - MACPI-255

The machine is controlled and programmed by programmer PV 14.20 which displays and stores 14 programmes and 20 functions.

The new multi-stations pressing machine with belt is used for pressing knitted garments. It is equipped with the most modern devices to press garments of high quality and for a high productivity and is composed by three sections: garment preparation, pressing and drying, unloading and stacking. The dimensions of the plates (2000 x 1000 mm) permit to press maxi-sizes or the simultaneous pressing of two garments with short sleeves.

Overview

Steam heated, vacuum and steaming
Lower plate steam heated, vacuum and steaming
Pressing plate with vertical pneumatic lowering, steam heated and steaming. Possibility to stop the plate in the sponging position
Double device for size garment setting with possibility of combination to press one or two garments
Devices for the positioning and size-setting of the sleeves pressing shapes to hold and press the collar of one or two garments
Device to hold the cuffs
Positioning spot-lights (four)
Belt speed controlled by inverter
Automatic un-loader driven by inverter and photocells for garments packs up to 50cms
