Pattern Cutting Machine – MJ – 7300

Pattern Cutting Machine–MJ–7300

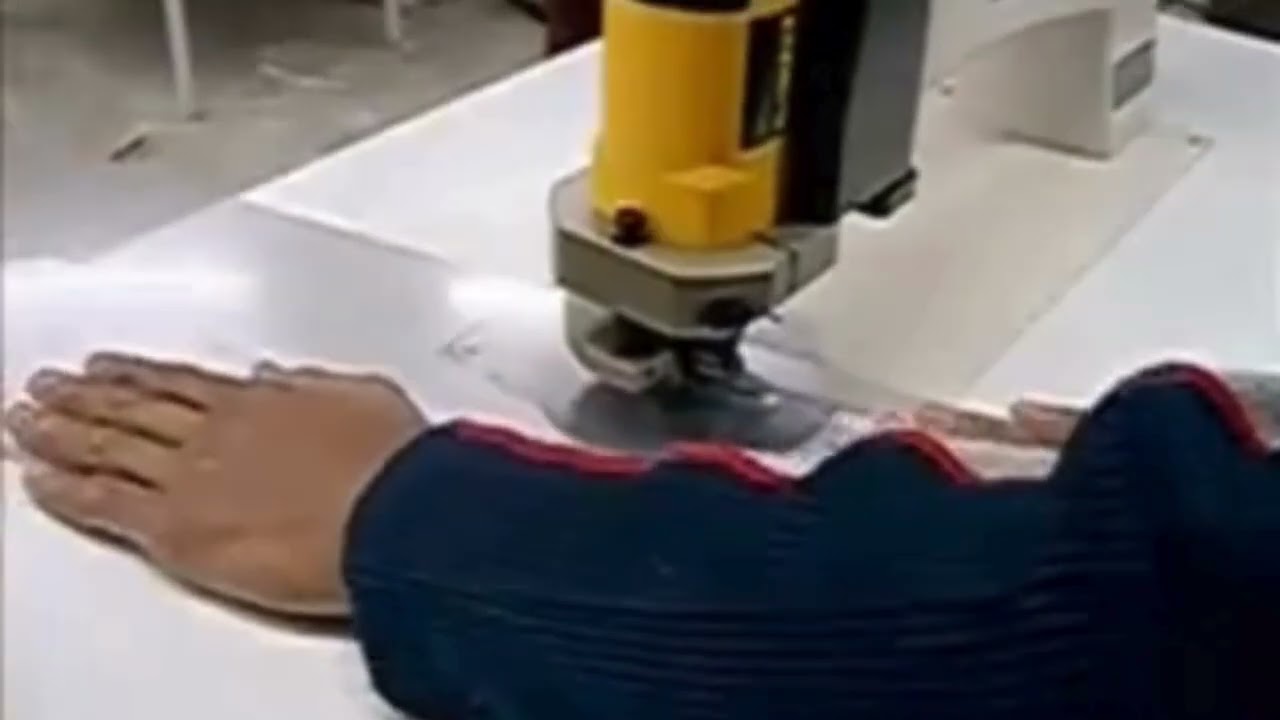

Machine is used for making Jig Profile for collar, cuff, pocket flap, fly piece, collar band, lapel etc. Any material can be cut like Poly-Carbonate, Acrylic & Bakelite.

Overview

Motor Speed - 30,000 rpm.
Motor - 600 W.
Power / Power consumption - 199-240 V Free Voltage / 600 W.
Drill Bit Size - 11mm, 13 mm (Standard), 6mm (Special Order), HSS with carbide Tip which can eliminate extra heat while cutting.

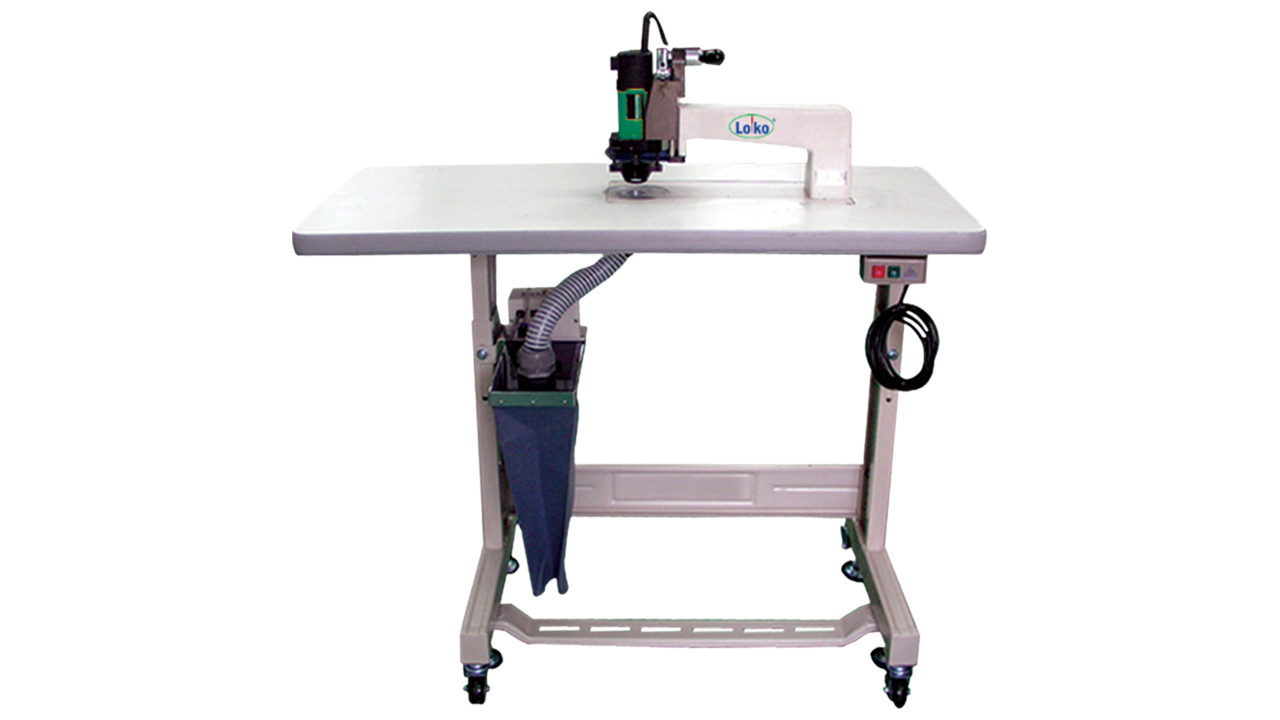

Optional Suction Box providing under the table to collect cutting waste to the drum.
Making a Jig final pattern required – grading not required, can be used to provide fullness.
1T & 2T Jig – Jig Guide for different sizes (1T& 2T) for outer and inner cutting of the Jig Profile with one reference.
